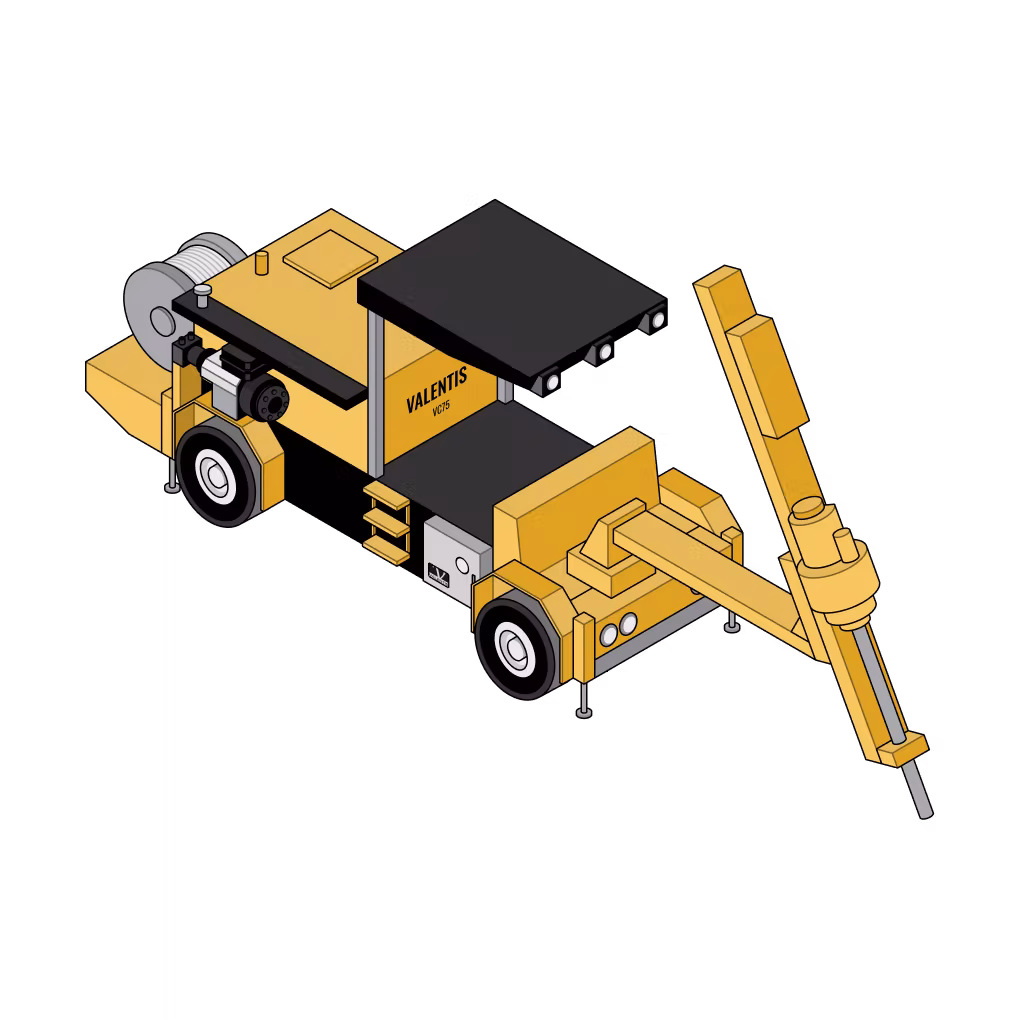

Rig Type:

Integrated Underground Diamond Coring Rig – Compact Power for Precision Exploration in Confined Spaces

Best for:

Narrow-Vein Mine Reconstruction: Perfect for Underground core drilling

Max Drilling Depth / Hole Size Capacity:

Deep and Versatile: Up to 1,020 m (NQ Horizontal) / BQ to PQ Sizes (36-96 mm Holes)

Pullback Capacity:

Robust Extraction: 81.4 kN Pull-Up Force

Engine & Emissions Compliance:

Cummins Engine 73-75 kW (100 hp) at 2,200-2,400 RPM – Compliant with III EURO V Emissions

Carrier / Mobility:

Agile Underground Navigation: 4WD Articulated Chassis with 15° Gradeability, 7 km/h Tramming Speed, 250 mm Ground Clearance, and Tight Turning Radius (Inner 3.3 m)

Drilling Performance:

Efficient Coring: 1.83 m Feed Stroke, 900 Nm Max Torque, 360° Boom Rotation, Load-Sensing Hydraulics, Optional Wireline Hoist with 1,400 m Capacity, and Water Flushing System

Safety & Automation:

Advanced Protection: Fail-Safe Rod Clamp, High-Torque Automated Breakout, Proportional Controls, and Semi-Automated Rod Handling for Reduced Operator Fatigue

Operational Advantages:

Hybrid Excellence: Modular Integration for Upgrades, 30 m² Coverage in Tight Drifts (1.8 x 1.8 m Min Passage), Boosting Safety and Productivity in Challenging Environments

Rig Type:

Modular Underground Diamond Coring Drill – Most Powerful Design for Deep-Hole Precision in Challenging Environments

Best for:

Deep Underground Operations: Suited for Mining Exploration, Tunneling, Hydropower Stations, and Geological Sampling in Confined Spaces

Max Drilling Depth / Hole Size Capacity:

Superior Depth: Up to 1,260 m (NQ Horizontal) / AQTK to PQ Sizes (30-96 mm Holes)

‍

Pullback Capacity:

Exceptional Force: 127.69 kN Pull-Up

Engine & Emissions Compliance:

Hydraulic Power Pack: Optional 110 kW Upgrade for Up to 33% More Torque – Electric Motor (Diesel Optional) at 380/660 V, 50/60 Hz

Carrier / Mobility:

Flexible Modular System: Positioner and Turntable for All-Angle Drilling (Vertically Up to Down), Reversible Feed Frame for Versatile Setup and Easy Transport

Drilling Performance:

High-Efficiency Coring: 1.83 m Feed Stroke, 1,088 Nm Max Torque, Variable 0-1,330 RPM Rotation, Load-Sensing Hydraulics, Optional DCI for Unattended Drilling, and Wireline Hoist with 1,500 m Capacity

‍

Safety & Automation:

Advanced Safeguards: Optional Rod Handler for Hands-Free Operation, Fail-Safe Rod Clamp, High-Torque Automated Breakout, and Proportional Controls to Minimize Fatigue

Operational Advantages:

Productivity Leader: Modular Upgrades, Fast Rod-Handling (15 m/min), Delivering More Meters per Shift, Enhanced Safety, and Increased Revenue in Demanding Conditions

Rig Type:

Heli-portable with removable easily track base Diamond Core Drill Rig – Adaptable for Any Challenge

Best for:

Optimized Varied Terrains

‍

Max Drilling Depth / Hole Size Capacity:

Exceptional Depths: NQ ~1,300–1,500 m, HQ ~900–1,100 m, PQ ~600 m for Thorough Resource Evaluation

Pullback Capacity:

12–15 Tonnes

‍

Engine & Emissions Compliance:

Cummins 6BT or Similar Engine Offering ~200–250 HP for Robust Performance

Carrier / Mobility:

Ultimate Versatility: Easily removable bolt on/off track base converts to Skid/Heli-Portable; Modules Under 800 kg; Perfect for Any Terrain or Access Needs

Drilling Performance:

Top-Drive Head, Wireline Winch, Rod Holder, and Hydraulic Leveling for Accurate, Efficient Operations

Safety & Automation:

Comprehensive Safeguards: Built-In Safety Interlocks for Reliable Protection

‍

Operational Advantages:

Dependable and Accessible: Reliable Quality with Excellent Parts Availability Across Asia

Rig Type:

Advanced Horizontal Directional Drilling (HDD) Rig – Track Mounted for Precision and Power

‍

Best for:

Stabilize and Drain with Ease: Perfect for Creating Long Sub-Horizontal Holes (5–15° Upwards) to Manage Groundwater, Reduce Pore Pressure, and Enhance Slope Stability

‍

Pullback Capacity:

Heavy-Duty Capability: 40 Tonnes of Pullback Power for Demanding Applications

Engine & Emissions Compliance:

High-Performance Drive: 300 HP Cummins Engine

‍

Carrier / Mobility:

All-Terrain Readiness: Full Crawler Chassis with On-Board Hydraulics for Seamless Movement and Setup

Drilling Performance:

Torque and Efficiency Combined: High-Torque Rotary Head, Long Feed Stroke, and Integrated Mud Pump for Smooth, Productive Drilling

Safety & Automation:

Enhanced Protection: Optional Enclosed Cabin and Remote Control Tramming for Safer, More Comfortable Use

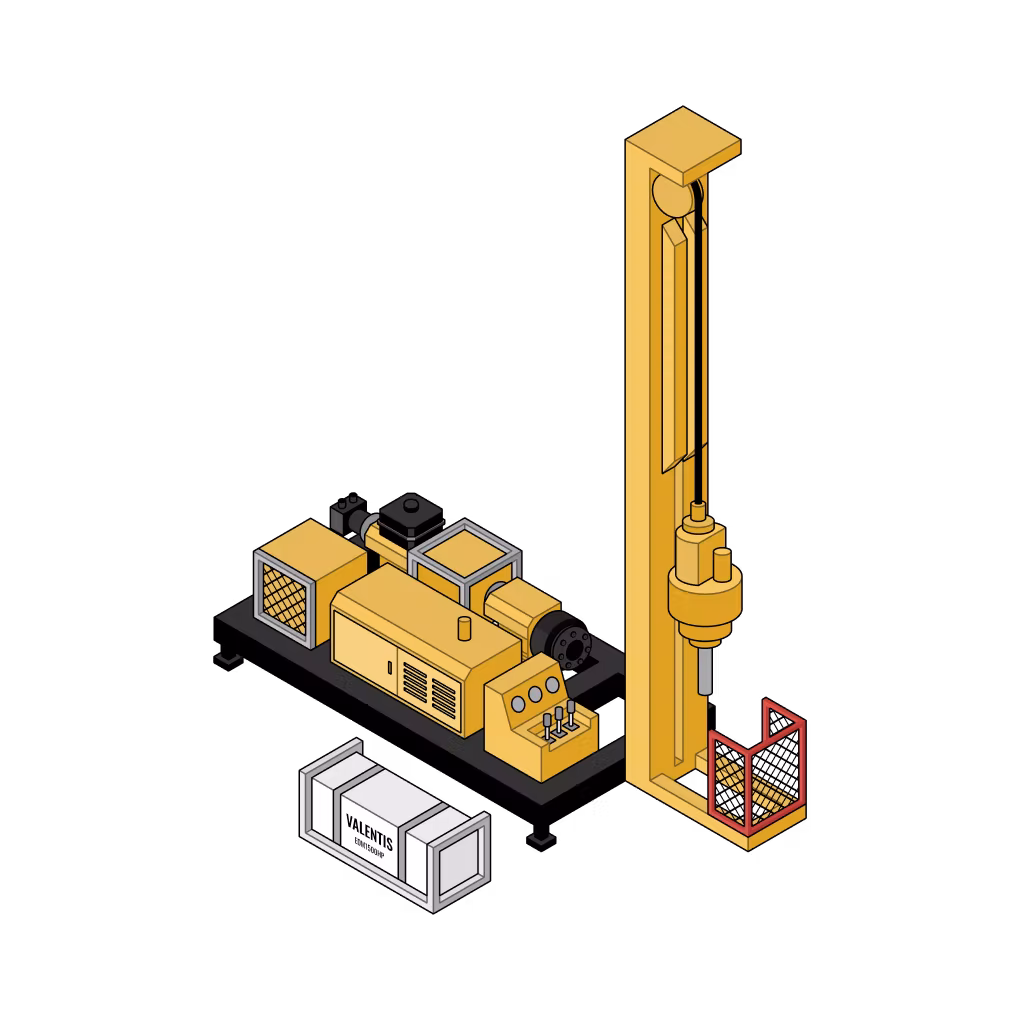

Rig Type:

Versatile Heli-Portable Diamond Core Drilling Rig – Designed for Ultimate Mobility and Precision

‍

Best for:

Conquer Remote Frontiers: Perfect for Challenging Helicopter-Accessible Locations, Ideal for Mineral Exploration in Rugged, High-Altitude, or Isolated Terrains Where Others Can't Go

‍

Max Drilling Depth / Hole Size Capacity:

Achieve Impressive Depths of B+ up to 2,150 m, N+ 1,700 m, H+ 1,150 m, and P+ 750 m; Seamlessly Supports B+ to P+ Casing (44.5–139.7 mm Rods) for Flexible, High-Quality Sampling

Pullback Capacity:

Massive 13,607 kg (30,000 lb) Pullback Ensures Smooth Handling of Demanding Loads

‍

Engine & Emissions Compliance:

Efficient and Robust Performance: Powered by the 4BTA3.9 Turbocharged Engine Delivering 110 HP (82 kW) at 2,500 RPM for Reliable Operation in Tough Conditions

‍

Carrier / Mobility:

Effortless Transport and Setup: Breaks Down into 16 Lightweight Modules (Max 730 kg Each) for Easy Helicopter Lifts

Drilling Performance:

Features Top-Head Drive (60 mm ID) with Two-Speed Gearbox; Hydraulic Rod Spinner

‍

Operational Advantages:

Exceptional Portability with Rapid Setup in Harsh Environments

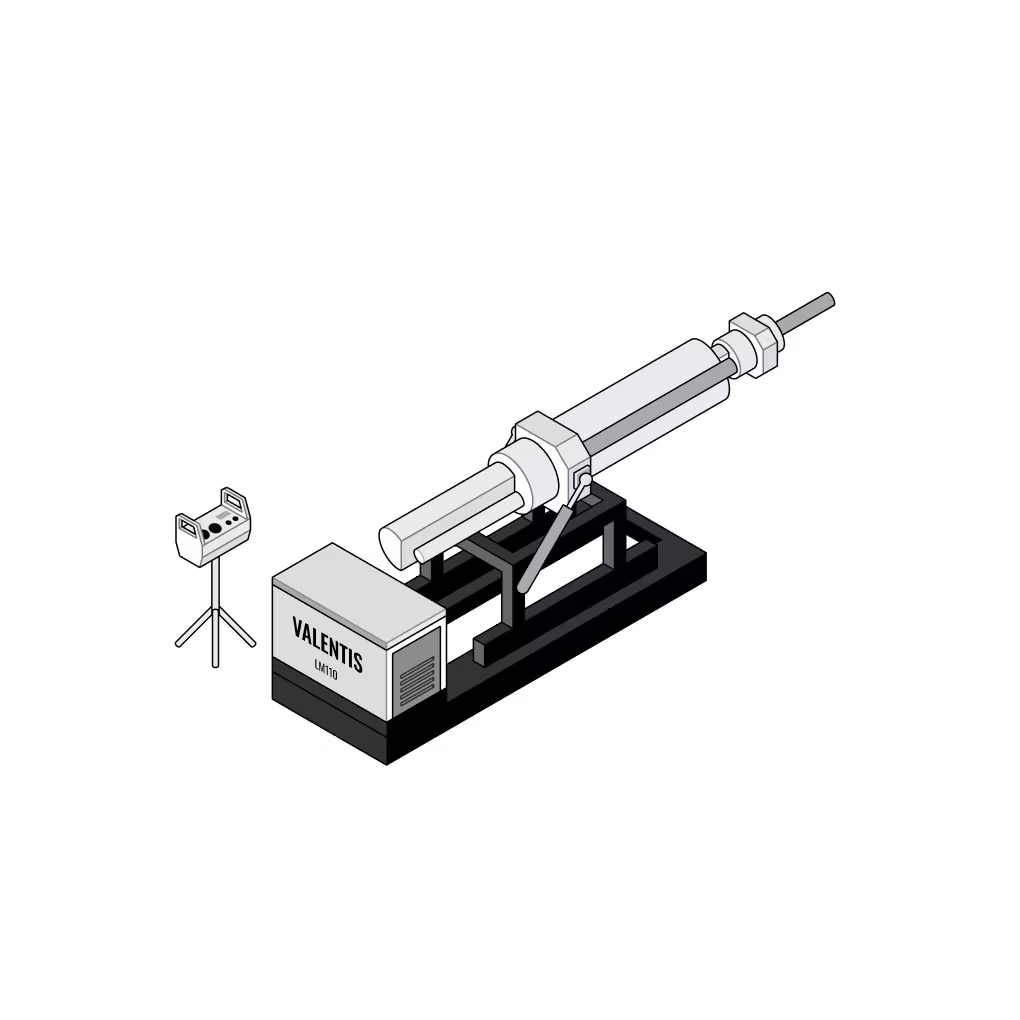

Rig Type:

Specialized Underground Diamond Coring Drill – Compact Power for Confined Spaces

‍

Best for:

Perfect for Mineral Exploration at All Angles in Tight, Challenging Environments

‍

Max Drilling Depth / Hole Size Capacity:

Deep Horizontal Reach: ARQTM TK/BQTM up to 1,500 m, NQTM 1,020 m, HQTM 520 m; Q Series Rods for 75.7–96 mm Holes and Precise Cores

‍

Pullback Capacity:

Strong Pull: 81.4 kN (18,250 lbf) for Efficient Underground Handling

‍

Engine & Emissions Compliance:

75 kW Electric Motor

Carrier / Mobility:

Skid or tracked solutions

Drilling Performance:

1,830 mm Feed Stroke, up to 3,770 Nm Torque, 1,330 RPM Speeds, Proportional Controls, and Optional Wireline Hoist for Smooth Operations

‍

Safety & Automation:

Advanced Safeguards: Fail-Safe Rod Clamp, High-Torque Breakout, Lock Levers for Enhanced Security

Operational Advantages:

Upgradeable Efficiency: Modular Design with Load-Sensing Hydraulics, Quick Rod Handling, and Compact Build (~960 kg Feed Frame) for Underground Reliability

Rig Type:

Ultra-Compact Man-Portable / Heli-Portable Diamond Core Drill Rig – Built for Agility and Accessibility

‍

Best for:

Explore the Unreachable: Tailored for Remote Environments or Limited-Access Sites Where Portability is Key

‍

Max Drilling Depth / Hole Size Capacity:

Precision at Every Level: Delivers Reliable Depths of NQ up to 200 m, HQ 150 m, and PQ 90 m

Pullback Capacity:

Balanced Strength: 3,500 kg Pull-Up and 6,500 kg Pull-Down for Controlled, Powerful Drilling

Engine & Emissions Compliance:

Compact Powerhouse: Equipped with the Kubota V1505-E4 Liquid-Cooled Diesel Engine Providing 35 HP at 2,800 RPM

Carrier / Mobility:

Fully Man-Portable with Modules Weighing ~350 kg Max; Generous 120 L Hydraulic Tank and 50 L Fuel Tank for Extended Operations

‍

Safety & Automation:

Lightweight Modular Build Ensures Quick Assembly with Minimal Crew, Reducing Risks in Remote Settings

‍

Operational Advantages:

Minimize Your Impact, Maximize Results: Tiny Footprint with Low Environmental Disturbance

Rig Type:

Dynamic Reverse-Circulation (RC) Sampling / Grade Control + DTH Production Blast Hole Rig – Precision Meets Power

‍

Best for:

Optimize Mining Efficiency: Ideal for RC Grade Control, Blast Hole/Pre-Split Drilling in Open-Pit Mines and Quarries

‍

Max Drilling Depth / Hole Size Capacity:

Accurate and Deep: 120–150 mm Holes (up to 165 mm)

‍

Pullback Capacity:

Strong Pull: 50 kN Pull-Up

Engine & Emissions Compliance:

Cummins QSZ13 Providing 410–412 kW (552 hp) at 1,900–2,100 RPM – Tier 3 Compliant

Carrier / Mobility:

Heavy-Duty Crawler with 25° Climbing, 3 km/h Tramming

Drilling Performance:

Advanced Compression: 33 m³/min @ 25 Bar Compressor, 5,600 Nm Rotary Head, 7.6 m Stroke, 6+1 Rod Handler, and Two-Stage Dust Collection

‍

Safety & Automation:

Premium Features: FOPS/ROPS Cabin with A/C, 360° Cameras, Emergency Stops, Auto Fire Suppression, and Optional Remote Control

Operational Advantages:

Dual-Capability Excellence: High Penetration with Low Contaminatio

Rig Type:

High-Capacity RC Grade Control Rig – Built for Precision and Productivity

‍

Best for:

Ideal for Grade Control in Demanding Environments

‍

Max Drilling Depth / Hole Size Capacity:

Holes up to 300 mm Diameter and 20–50 m Depths for Accurate Results

‍

Pullback Capacity:

Forceful Execution: 16 Tonnes (160 kN) for Efficient Pullback in Hard Rock

‍

Engine & Emissions Compliance:

Unmatched Power: Hyundai Engine Delivering 540 kW (725 HP) at 1,800 RPM for Superior Endurance

Carrier / Mobility:

Crawler Design with compact Transport Dimensions (10.5 × 3.05 × 3.05 m)

Drilling Performance:

Advanced Features: 900 cfm / 25 Bar Compressor, Rod Carousel, Dust Collector/water injection option, and Cyclone for Clean, Fast Drilling

Safety & Automation:

Operator-Focused: Protected Cabin with Optional A/C and Remote Tramming for Comfort and Security

‍

Operational Advantages:

Tough and Reliable: Robust for Hard-Rock Mines in Hot Climates, Ensuring Minimal Downtime

Rig Type:

Cutting-Edge DTH / Production Blast Hole Rig with RC Capability – Engineered for Smart Mining

‍

Best for:

Ideal for RC Grade Control, Production Drilling, Presplit, and Mine Development

‍

Max Drilling Depth / Hole Size Capacity:

Precision Depths: Up to 55.5 m with Hole Sizes 102–203 mm (Optimal 127–165 mm) for High-Accuracy Work

Pullback Capacity:

High-Capacity DTH Mast for Demanding Pullback Needs

Engine & Emissions Compliance:

Eco-Friendly Power: Caterpillar C15 Delivering 403 kW (540 HP) at 1,800 RPM, Tier 3 / Stage IIIA Compliant

‍

Carrier / Mobility:

Robust Crawler Platform

Safety & Automation:

Top-Tier Protection: ROPS/FOPS Cabin, Automated Rod Handling, Interlocks, Remote Monitoring, and Fire Suppression Systems

‍

Operational Advantages:

Productivity Leader: Exceptional in Hard Rock with Fuel Efficiency, RCS System, and Proven Performance in SE Asia

‍

Rig Type:

Crawler Multi-Purpose Rig (Core + RC ) – The Ultimate Versatile Performer

Best for:

Tackle Any Task: Perfect for Deep RC (400 m), Diamond Core up to ~2,000 m NQ, and Water Wells in Varied Projects

Max Drilling Depth / Hole Size Capacity:

Expansive Capabilities: RC 400 m (5"); Diamond NQ up to 2,000 m for Broad Exploration Needs

Pullback Capacity:

20–25 Tonnes for Powerful, Controlled Operations

‍

Engine & Emissions Compliance:

Cummins or Hyundai Engine Providing ~400–500 HP for Peak Efficiency

Carrier / Mobility:

Track Crawler with Hydraulic Jacks

Drilling Performance:

Top-Head Drive,, Jib Crane, and Variable Mud Pump for Seamless Workflow

Safety & Automation:

Top-Tier Protection: ROPS/FOPS Cabin, Automated Rod Handling, Interlocks, Remote Monitoring, and Fire Suppression Systems

‍

Operational Advantages:

Productivity Leader: Exceptional in Hard Rock with Fuel Efficiency, RCS System, and Proven Performance in SE Asia

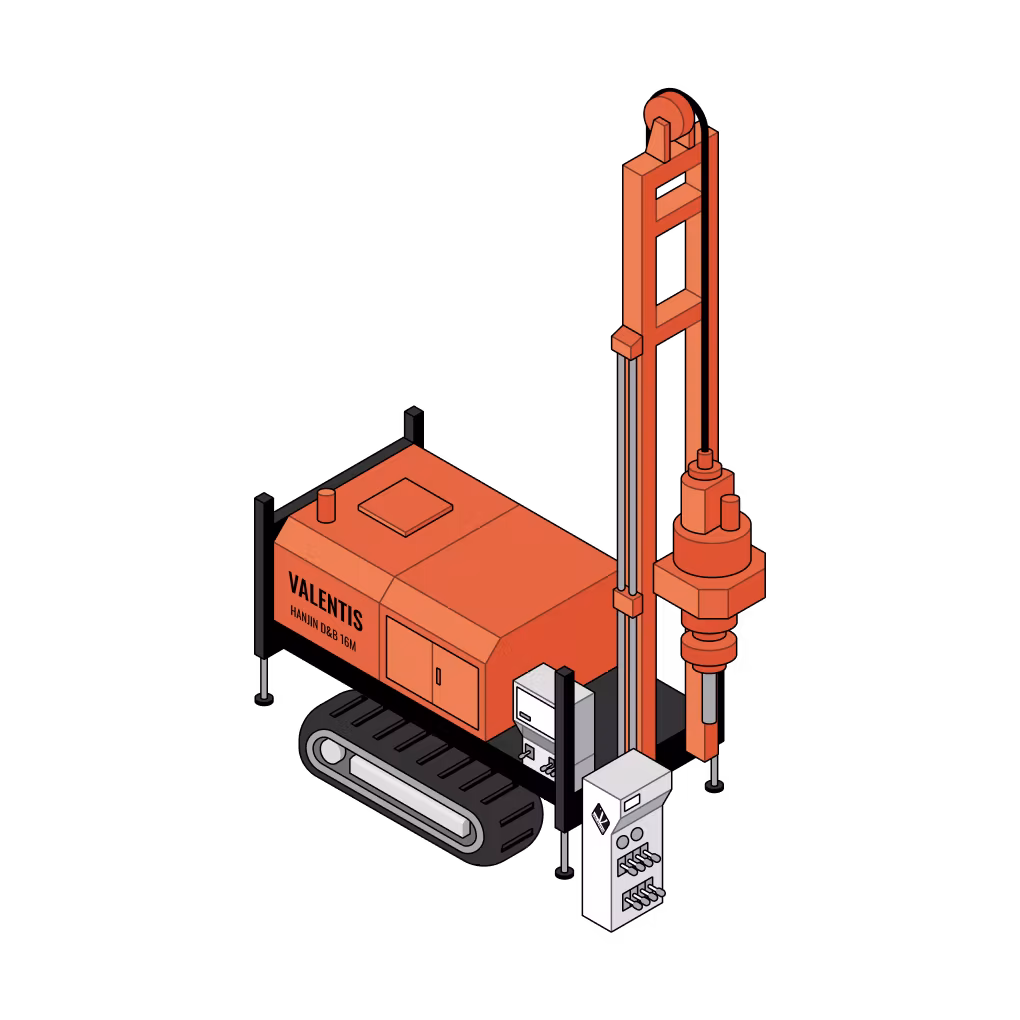

Rig Type:

Multi-Purpose Hydraulic Top-Drive Drill Rig

‍

Best for:

Perfect for RC Sampling, Diamond Core, Geotechnical, Mineral Exploration, and Water Wells in Remote Sites

Max Drilling Depth / Hole Size Capacity:

Broad Horizons: BQ ~1,500 m, NQ ~1,100–1,200 m, HQ ~700–800 m, PQ ~400 m for Comprehensive Drilling

Pullback Capacity:

16 Tonnes Pull-Up and 8 Tonnes Pull-Down for Precise Control

Engine & Emissions Compliance:

Efficient Turbo: Hyundai D6GA/D6BT Diesel Offering 180–220 HP at 1,800–2,000 RPM (Tier 3)

Carrier / Mobility:

Track Crawler with Hydraulic Jacks

Drilling Performance:

High-Performance Head: HJGB800 (0–1,100 RPM, 400 kg·m Torque), 7.0 m Stroke, Wireline Winch, YH88 Pump, and 914 mm Mast Dump

Safety & Automation:

Comprehensive Protection: Multiple Emergency Stops, Proportional Controls, Guards, Anti-Slip Platforms, and Optional Rod Guard

‍

Operational Advantages:

Versatile and Dependable: Combines RC, Core, and Geotech

Rig Type:

Robust Crawler Mounted Reverse Circulation (RC) / Rotary Drill Rig – For Extreme Conditions

Best for:

Ideal for Exploration, Grade Control Production, and Harsh Terrains with DTH, Air/Mud Rotary, and Dual Tube Options

‍

Max Drilling Depth / Hole Size Capacity:

RC up to 775 m (4.5" Pipe), Rotary up to 1,000 m; 4.5–6" Diameters (114–152 mm) for Versatile Sampling

Pullback Capacity:

329 kN (33.6 Tonnes) Pull-Up and 178 kN (18 Tonnes) Pull-Down for Heavy-Duty Tasks

‍

Engine & Emissions Compliance:

CAT C27 Delivering 950 bhp (708 kW) at 2,100 RPM, Tier 2 / Stage II Compliant

‍

Carrier / Mobility:

Remote-Ready: Crawler Chassis with Radio Remote Tramming (~3–4 km/h), 4 Leveling Jacks, 1,000 L Fuel Tank; ~35–40 Tonnes; Dimensions ~12 × 3 × 4 m

‍

Drilling Performance:

Sullair Compressor (1,150–1,350 cfm @ 350–500 psi), Dual Motor Head (~12,000 Nm Torque), 9.14 m Travel, Multi-Axis Rod Handler (45 Rods), Cyclone Splitter, and FMC Pump

‍

Safety & Automation:

Comprehensive Systems: E-Fire Suppression, Protected Control Panel, Guards, Emergency Stops, Whip Checks, and Hands-Free Locking

‍

Operational Advantages:

Battle-Tested Reliability: Excels in Extremes with High Penetration Rates and Low Maintenance; Full Epiroc Support; Customizable Options

‍

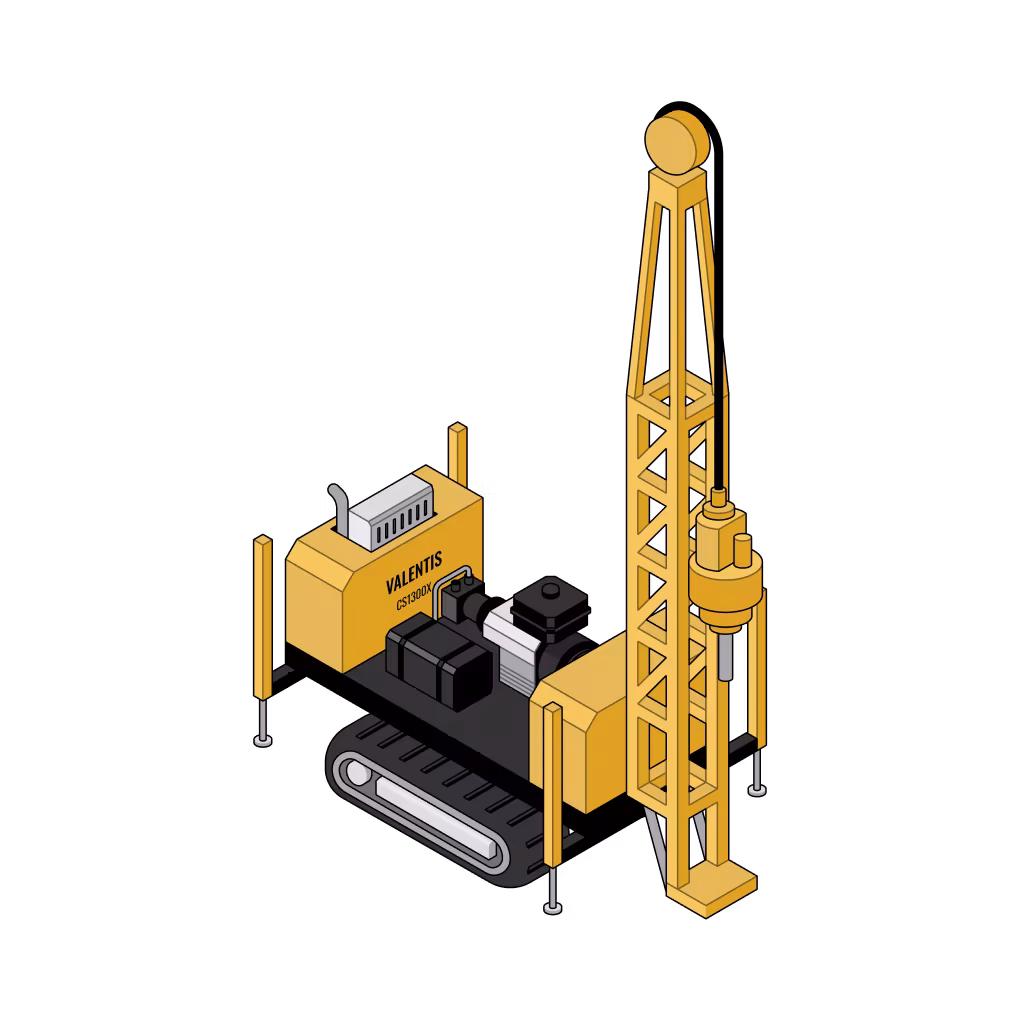

Rig Type:

Flexible Crawler Mounted Diamond Core Drill Rig – Adaptable for Any Challenge

Best for:

Optimized Varied Terrains

Max Drilling Depth / Hole Size Capacity:

Exceptional Depths: NQ ~1,300–1,500 m, HQ ~900–1,100 m, PQ ~600 m for Thorough Resource Evaluation

Pullback Capacity:

12–15 Tonnes

Engine & Emissions Compliance:

Cummins 6BT or Similar Engine Offering ~200–250 HP for Robust Performance

Carrier / Mobility:

Ultimate Versatility: Removable Track Base Converts to Skid/Heli-Portable; Modules Under 800 kg; Perfect for Any Terrain or Access Needs

Drilling Performance:

Top-Drive Head, Wireline Winch, Rod Holder, and Hydraulic Leveling for Accurate, Efficient Operations

Safety & Automation:

Comprehensive Safeguards: Built-In Safety Interlocks for Reliable Protection

Operational Advantages:

Dependable and Accessible: Reliable Quality with Excellent Parts Availability Across Asia

Rig Type:

Durable Track Crawler Mounted Diamond Core Drilling Rig – Built for High-Penetration Excellence

‍

Best for:

Ideal for Diamond Core Drilling Across Various Terrains in Mineral Exploration Projects

Max Drilling Depth / Hole Size Capacity:

Superior Depths: BS 2,000 m, NS 1,700 m, HS 1,200 m, PS 700 m; Compatible with BS to PS Rods (117 mm Chuck) for Versatile Hole Sizes

Pullback Capacity:

189 kN (Head), 135 kN (Main Winch), 11 kN (Wireline) for Powerful Pulls

‍

Engine & Emissions Compliance:

Turbocharged Reliability: Cummins 6CTA8.3-C240 Delivering 179 kW at 2,200 RPM

Carrier / Mobility:

Track Crawler with Hydraulic Jacks, 30° Gradient Capability, 2 km/h Speed; Compact Dimensions (5,250 × 2,320 × 2,600 mm) and 11.3 t Weight

Drilling Performance:

Versatile Gearbox: 4-Speed System (up to 5,500 Nm Torque, 1,200 RPM), 3,500 mm Stroke, 10 m Mast (45°-90°)

Safety & Automation:

Comprehensive Protection: Multiple Emergency Stops, Proportional Controls, Guards, Anti-Slip Platforms

Operational Advantages:

Robust and Efficient: Strong Structure with Full Hydraulic Controls, 3.5 m Stroke for 3 m Rods, European Hydraulics, and Easy Track Mobility for Outstanding Reliability
